BMS Process Flow
Full size is 1456 × 1165 pixels

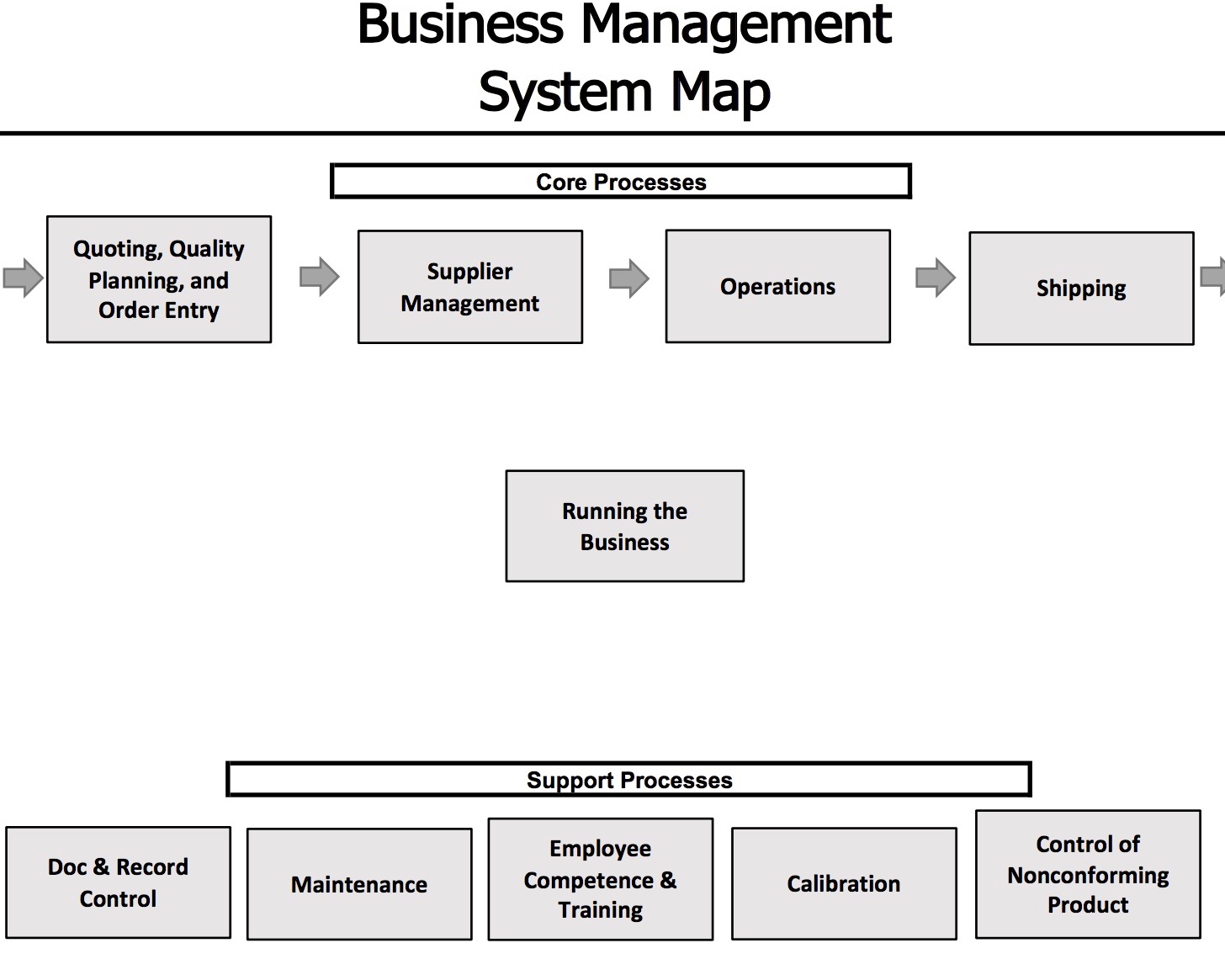

This simple graphic is the foundation of a process-based quality system. It is used to develop metrics and procedures, and it is a useful tool for demonstrating how each element of a system affects other areas.
